Diagonal-Plus-Low-Rank Matrices and Kimi Delta Attention
A diagonal-plus-low-rank transition separates channel-wise memory decay from directional correction. Kimi Delta Attention constrains this expressive structure through variable binding, making it more suitable for efficient blockwise computation on GPUs.
1. Diagonal-Plus-Low-Rank State Transitions
Consider a discrete-time recurrence with a matrix-valued hidden state $S_t$:
\[S_t = \left( \underbrace{D}_{\text{diagonal matrix}} - \underbrace{a_tb_t^\top}_{\text{low-rank / rank-1 matrix}} \right)S_{t-1} + k_tv_t^\top.\]The transition combines two complementary operations:
- Diagonal component $D$, or $\operatorname{Diag}(\alpha_t)$: independently scales or decays each feature channel. It determines how quickly different components of the memory fade over time.
- Low-rank component $a_tb_t^\top$: performs directional erasure and correction in the state space, such as the selective erase operation used by DeltaNet.
The central idea of a diagonal-plus-low-rank (DPLR) matrix is therefore to decompose an otherwise complicated transition matrix into a simple diagonal term and a structured low-rank term. The diagonal part provides fine-grained channel-wise control, while the rank-1 part couples selected directions of the state.
2. Application to Kimi Delta Attention
Gated DeltaNet uses the recurrence
\[S_t = \alpha_t\left(\mathbf{I}-\beta_tk_tk_t^\top\right)S_{t-1} + \beta_tk_tv_t^\top,\]where the forget gate $\alpha_t$ is a scalar: the entire state matrix shares one decay rate. Kimi Delta Attention (KDA) replaces this scalar decay with the diagonal matrix $\operatorname{Diag}(\alpha_t)$:

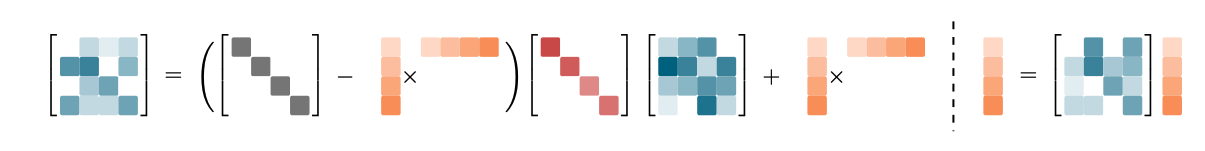

\[\begin{aligned} S_t &= \left(\mathbf{I}-\beta_tk_tk_t^\top\right) \operatorname{Diag}(\alpha_t)S_{t-1} + \beta_tk_tv_t^\top \in \mathbb{R}^{d_k\times d_v}, \\ o_t &= S_t^\top q_t \in \mathbb{R}^{d_v}. \end{aligned} \tag{1}\]The resulting transition is DPLR: $\operatorname{Diag}(\alpha_t)$ is its diagonal component, and the remaining correction is rank 1.
Although a general DPLR transition is expressive, fine-grained diagonal decay can disrupt the symmetry that makes an ordinary sequence of rank-1 transformations easy to organize. Consequently, it cannot be parallelized by applying the standard compact WY expansion without modification.
3. KDA’s Core Idea: Variable Binding
A general DPLR transition can be parameterized as
\[S_t = \left(\mathbf{D}-a_tb_t^\top\right)S_{t-1} + k_tv_t^\top,\]where the two independent control vectors $a_t$ and $b_t$ determine the directions affected by the low-rank erase operation. A fully general network may require separate projections such as
\[a_t=W_ax_t, \qquad b_t=W_bx_t.\]KDA instead binds both low-rank directions to the existing key $k_t$, with scalar and diagonal modulation:
\[a_t=\beta_tk_t, \qquad b_t=k_t\odot\alpha_t.\]Because
\[k_t\odot\alpha_t = \operatorname{Diag}(\alpha_t)k_t,\]the outer product becomes
\[\begin{aligned} a_tb_t^\top &= (\beta_tk_t)(k_t\odot\alpha_t)^\top \\ &= \beta_tk_t \left(\operatorname{Diag}(\alpha_t)k_t\right)^\top \\ &= \beta_tk_tk_t^\top\operatorname{Diag}(\alpha_t). \end{aligned}\]Substituting this expression into the DPLR transition yields
\[\begin{aligned} S_t &= \left( \operatorname{Diag}(\alpha_t) - \beta_tk_tk_t^\top\operatorname{Diag}(\alpha_t) \right)S_{t-1} + \beta_tk_tv_t^\top \\ &= \left(\mathbf{I}-\beta_tk_tk_t^\top\right) \operatorname{Diag}(\alpha_t)S_{t-1} + \beta_tk_tv_t^\top. \end{aligned}\]From the perspective of network parameterization, variable binding is parameter reuse: KDA does not learn two completely independent low-rank directions. It reuses $k_t$ in both factors and obtains $b_t$ by modulating that key with the channel-wise decay vector $\alpha_t$.
This constrained DPLR structure removes unnecessary independent projections and preserves enough algebraic structure to support a UT transform and a diagonally decayed variant of the WY representation. A serial recurrence within each chunk can then be reorganized into GEMM operations that map efficiently to GPU Tensor Cores.
